Zentro

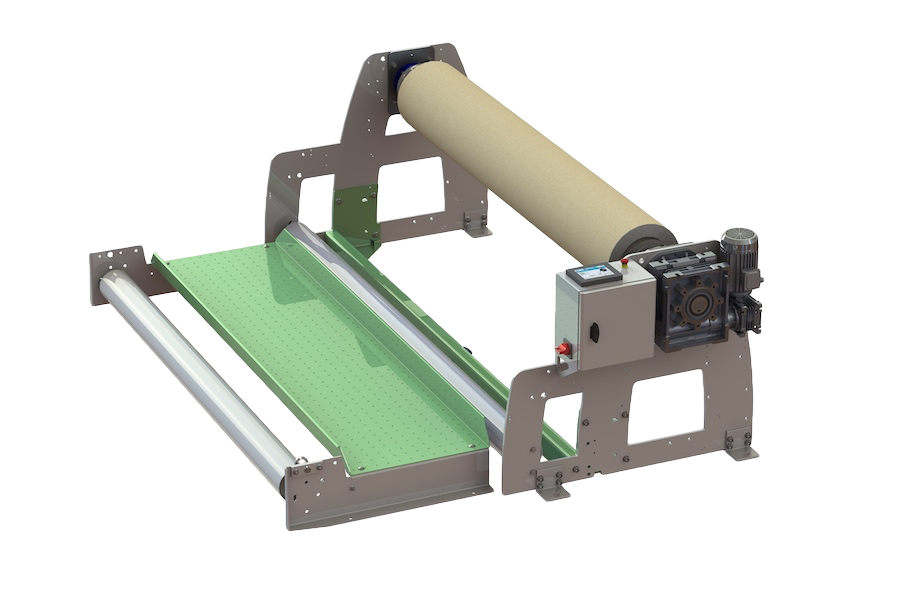

The second generation center winder is fully equipped with the latest technologies and expanded options for winding. The fabric tension is continuously measured and monitored.
The tension is measured and monitored by using a digital load cell. Deviations from the digital settings are detected immediately and directly. The system responds instantaneously ensuring that the selected tension setting is precisely adhered to. A defined curve profile of the fabric tension to be wound can also be use. The multilingual touch-screen operation shows the set fabric tension and enables the user to easily adjust the machine.



PDF-Download

Zentro Bild
blockHeaderEditIcon
Zentrumswickler Zentro

Optionen

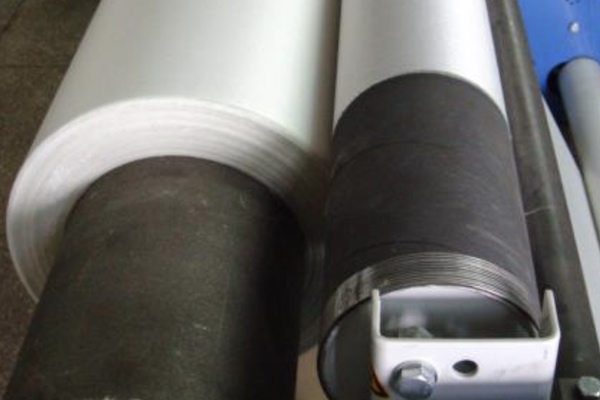

Pressing system

The Zentro Touch can be equipped with a multi-flexible pressing system in order to avoid the formation of creases and to maintain a compact roll when winding delicate fabrics.  The pressure onto the cloth roll is developed by pneumatic cylinders. The force can be individually adjusted according to the sensitivity of the respective fabric. A light barrier monitoring system guarantees safe operation ...

Traverse motion

The center winder can be equipped with a traverse motion function. This option allows continuous back and forth movement of the entire winder frame. Both the movement distance and the cycle speed can be custom set according to need. The traverse motion helps to avoid build-up of fabric at the edges or when winding open weave fabrics a slight dislocation results in a better, more compact winding quality.

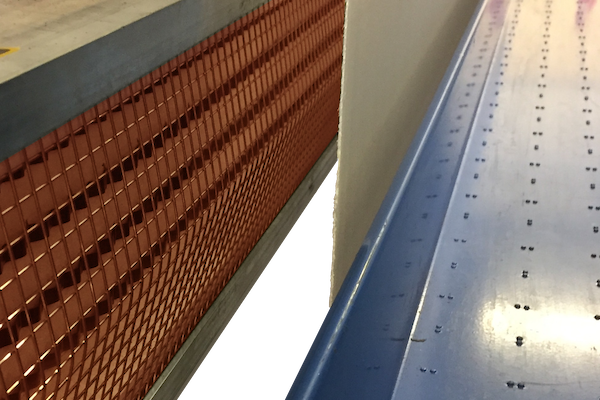

Heater

Fabric produced with water weft insertion can be dried before the winding process. This with infrared heating and intelligent power management ...

Meter counter

The meter counter allows the display of the cloth length on the touch screen panel. Specific cloth lengths can be programmed and help to optimize the logistics during shift work.

Inspection table

Winders of Willy Grob can be combined with automated cloth inspection systems. The integration into our system is possible without problems and for a successful use.
