PREMIUM

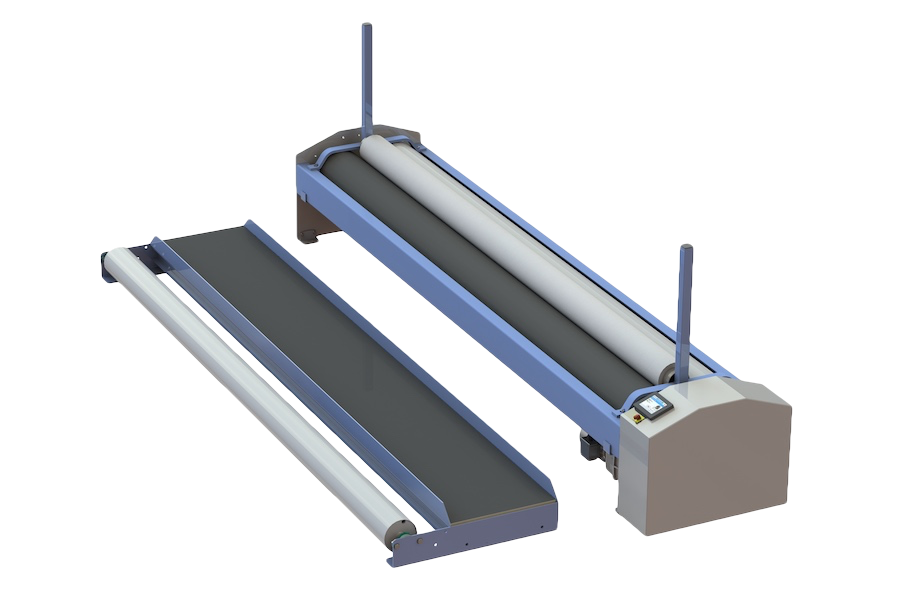

The Willy GROB batching unit type PREMIUM has been specially designed for applications on EXTRAWIDE weaving machines – e.g. particularly for nominal widths of 400cm to 540cm. Typical fields of application are geotextiles, polypropylene fabrics, trampoline-cloths and many more.

The fabric tension is directly measured and supervised with a state-of-the-art load cell. Deviations of the digital pre-setting are immediately detected. The system reacts instantly and assures a constant fabric tension from empty to full batch.

Heart of the system is the color-touch-screen panel using a fully graphic lead communication structure, allowing each and every user a friendly and intuitive handling in many different languages.



PDF-Download

Premium Bild
blockHeaderEditIcon
Premium

Optionen

Ejecting system

The bowed shape for the Superior shows up as a supporting invention when ejecting without mechanical support. The winder can initially be equipped with mechanical or electrical ejection system, but these options can also be added later due to the modularity of the machine design.

Traverse motion

This option allows the sidewise movement of the complete batch winder. The distance can be selected according to the needs of the fabric, allowing to avoid a build-up of the cloth in the selvedge area and save rubber ribbon on the drive roller.

Pressing system

Thanks to the usage of a pressure tube an increase of the roll density can be achieved when winding fabrics. Additionally the development of creases can be limited and the adhesion of the fabric at the start of the winding process can be increased.

Spreading system

The spreading system «STRETCH” enables to achieve a better winding result – up to the point of entirely eliminating creases of the cloth. This is a modular option and can be installed at any time later too.
Diese Option kann jederzeit auch nachträglich eingebaut werden.

Inspection Table

Each winder can be equipped with an inspection table. The control of the fabric quality is done between the weaving machine and the batching unit.
Each execution of the cloth inspection tables (straight or inclined) uses energy saving LED lights.

Meter Counter

The meter counter allows the display of the cloth length on the touch screen panel. Specific cloth lengths can be programmed and help to optimize the logistics during shift work.

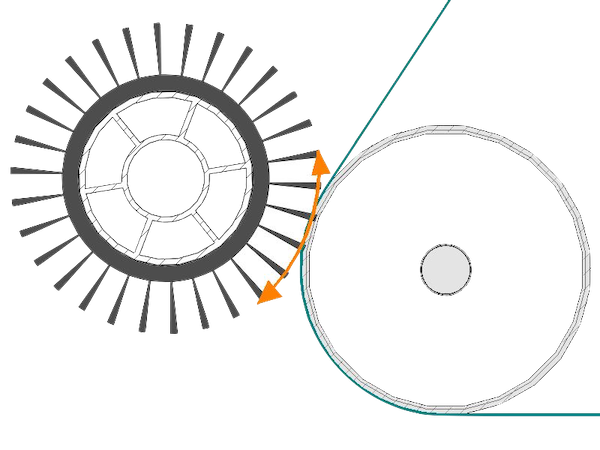

Brush-System

With this additional option, the surface of technical fabrics can be roughened in various intensities. The operation and adjustment is done by touch-screen panel ...
